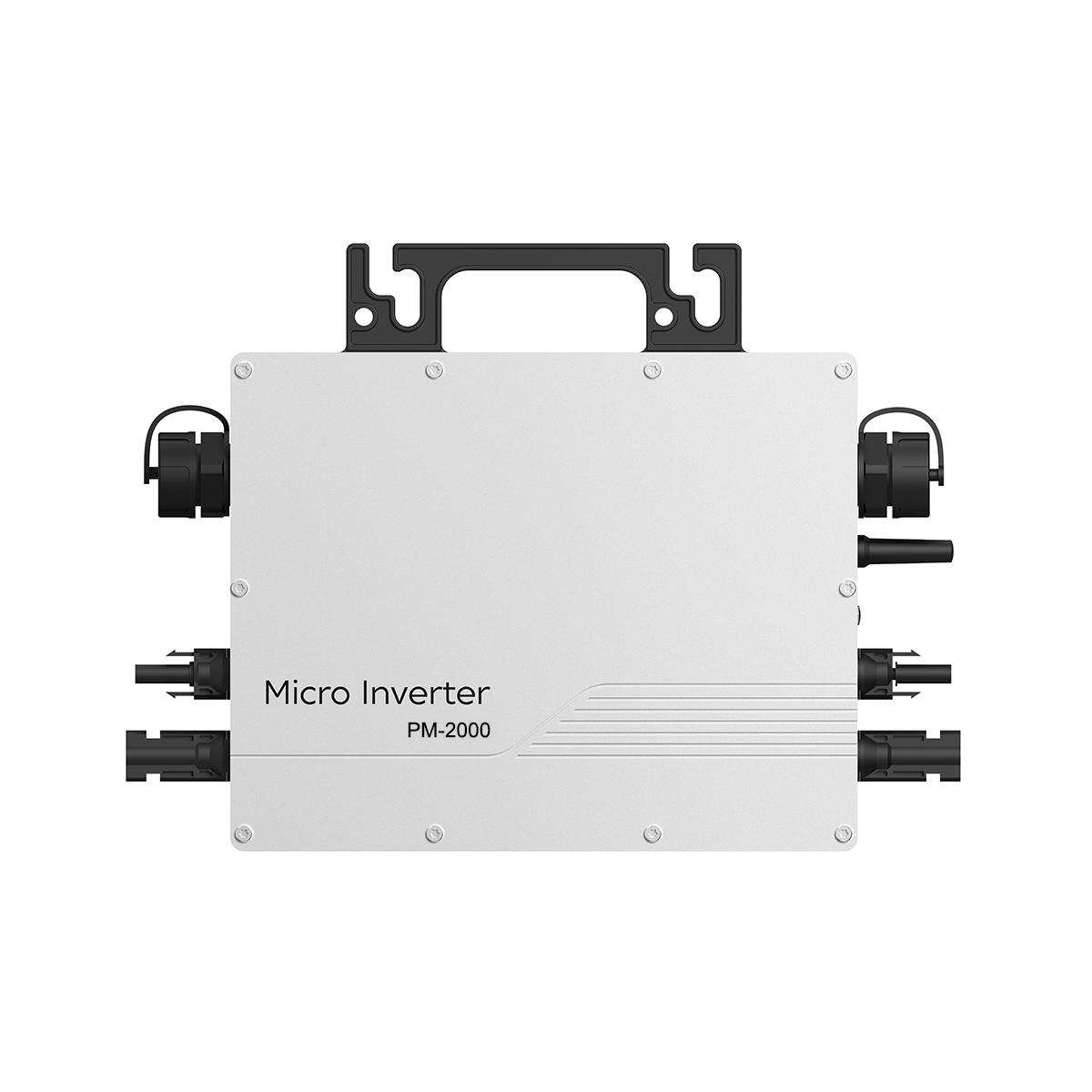

- Inverter 600/800/1600/2000W IP67 waterproof

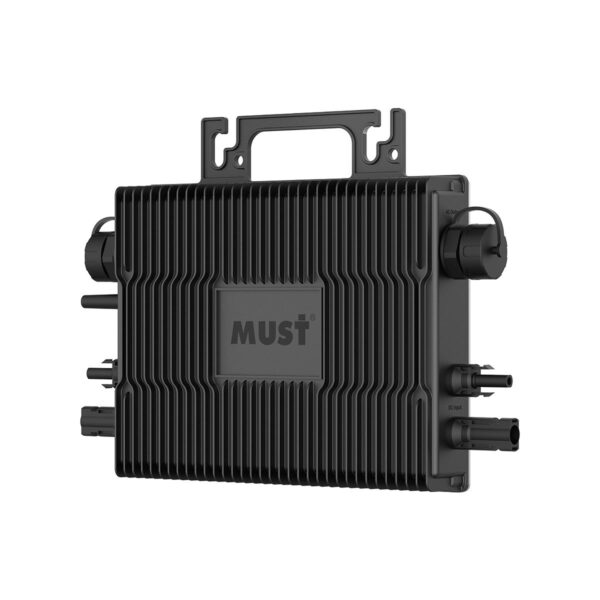

- Aluminum alloy body in high pressure oxidation process with good corrosion and oxidation resistance. The micro inverter waterproof according to IP67 to prevent rain drops from entering.
- Ultimate craftsmanship and comfortable installation design
- Inverter balcony power station is plug and play, so it can be installed without professional training or electrician. Connect the solar model to the MC-4 cable with two branch outputs.
- Intelligent Online Monitoring
- PV inverter has MPPT function, intelligent WiFi module and is equipped with a new generation of smart home WiFi monitoring system that can achieve intelligent online surveillance.
| Model | PM-600 | PM-800 | PM-1600 | PM-2000 | |
|---|---|---|---|---|---|
| Input Data(DC) | |||||
| Recommended solar panel input power | 200-430W × 2 | 275-530W× 2 | 275-530W× 4 | 275-530W× 4 | |
| Number of DC input connections | MC4 × 2 | MC4 × 4 | |||
| Max. input voltage | 60V | 60V | |||
| PV Operating voltage | 16-60V | 16-60V | |||
| Start-up voltage | 22V | 22V | |||
| MPPT tracking range | 22-55V | 22-55V | |||
| MPPT tracking accuracy | >99.5% | >99.5% | |||
| Max. continuous input current | 10A*2 | 14A*2 | 14A*4 | 17A*4 | |
| Output Data(AC) | |||||
| Max. continuous output power | 600W | 800W | 1600W | 2000W | |
| Nominal output voltage | 230V | 230V | 230V | 230V | |
| Operating voltage range | 190-270V | 190-270V | 190-270V | 190-270V | |
| Max. continuous output current | 2.6A | 3.47A | 6.95A | 8.69A | |
| Nominal output frequency | 50Hz/60Hz | ||||
| Output frequency range | 47.5-50.5Hz/58.9-61.9Hz | ||||
| Maximum units per branch | 8set | 6set | 2set | 2set | |
| THD | <5% | ||||
| Power factor | >0.99 | ||||
| Peak efficiency | 96% | ||||
| Protective class | Class I | ||||
| Protection Function | |||||
| Over/under voltage protection | Yes | ||||
| Over/under frequency protection | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Over current protection | Yes | ||||
| Over load protection | Yes | ||||
| Over temperature protection | Yes | ||||
| Type of enclosure | IP67 | ||||
| Operating ambient temp. | -40℃ to +65℃ | ||||
| Indication light quantity | Working status: Led light + Wi-Fi Signal Led light | ||||
| Communication connection mode | Wi-Fi / 2.4G | ||||
| Cooling method | Natural cooling(no fan) | ||||
| Working environment | Indoor and Outdoor | ||||
| Weight | 2.5Kg | 4.5Kg | |||
| Size (L*W*H)mm | 315*226*45 | 342*205*45 | |||
| Standards | VDE：VDE-AR-N 4105
CE-LVD：EN62109-1, EN62109-2 Rohs：IEC62321 |
||||
